Grid Reticles

KR-4402 glass eyepiece reticle whipple. Whipple 10mm x 10mm. 100 squares total (10 x 10). One square subdivided into 4 squares with numbers and letters. Diagonal equals 14.14mm. Available in a variety of diameters, select when ordering. Each Large...

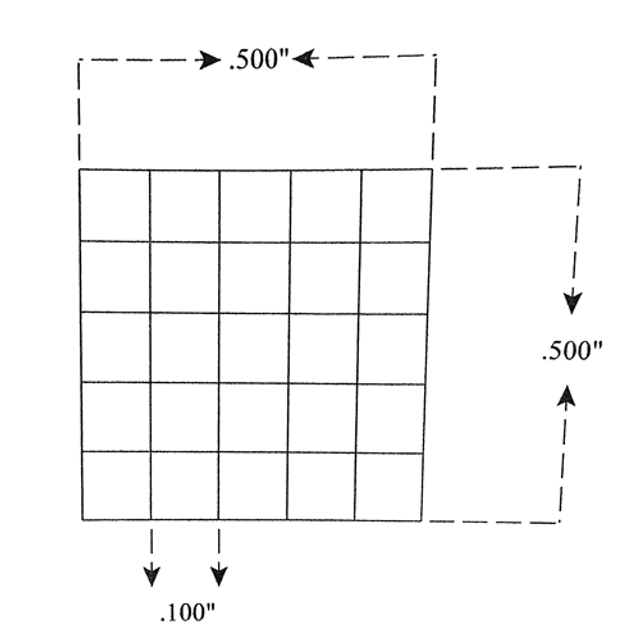

KR-4401 glass eyepiece reticle. Grid 0.500" x 0.500". 25 squares total (5 x 5) 0.100" squares. Without numbers and letters. Available in a variety of diameters; select when ordering. Each Square: 0.100" x 0.100" when using 1x objective Lines: Chrome...

KR-499 glass eyepiece reticle. Grid 8mm x 8mm. 400 squares total (20 x 20) 0.4mm squares. With numbers and letters. Diagonal equals 11.31mm. Available in a variety of diameters, select when ordering. Each Square: 0.4mm x 0.4mm when using 1x...

KR-498 glass eyepiece reticle. Grid 2mm x 2mm squares over 60mm field of view. Available in a variety of diameters, select below when ordering. Each Square: 2mm x 2mm when using 1x objective Lines: Chrome deposition Chamfer: 0.010" - 0.020" Flatness: 2...

KR-497 glass eyepiece reticle. Grid 12mm x 12mm. 100 squares total (10 x 10) 1.2mm squares. With numbers and letters. Diagonal equals 16.97mm. Available in a variety of diameters, select when ordering. Each Square: 1.2mm x 1.2mm when using 1x...

KR-496 glass eyepiece reticle. Grid 20mm x 20mm. 25 squares total (5 x 5) 4mm squares. Without numbers and letters. Diagonal equals 2.26mm. Available in a variety of diameters, select when ordering. Each Square = 4mm x 4mm when using 1x objective Lines:...

KR-494 glass eyepiece reticle. Grid 1.6mm x 1.6mm. 100 squares total (10 x 10) 0.16mm squares. Without numbers and letters. Diagonal equals 2.26mm. Available in a variety of diameters, select when ordering. Each Square: 0.16mm x 0.16mm when using 1x...

KR-493 glass eyepiece reticle. Grid 10mm x 10mm. 36 squares total (6 x 6) 1.66mm squares. Without numbers and letters. Diagonal equals 14.14mm. Available in a variety of diameters, select when ordering. Each Square: 1.66mm x 1.66mm when using 1x...

KR-492 glass eyepiece reticle. Grid 7mm x 7mm. 49 squares total (7 x 7) 1mm squares. Without numbers and letters. Diagonal equals 9.89mm. Available in a variety of diameters, select when ordering. Each Square: 1mm x 1mm when using 1x objective Lines:...

KR-489 glass eyepiece reticle. Grid 15mm x 15mm. 4 squares total (2 x 2) 7.5mm squares. Without numbers and letters. Diagonal equals 21.21mm. Available in a variety of diameters, select when ordering. Each Square: 7.5mm x 7.5mm when using 1x...

KR-488 glass eyepiece reticle. Grid 10mm x 10mm. 9 squares total (3 x 3) 3.33mm squares. Without numbers and letters. Diagonal equals 14.14mm. Available in a variety of diameters; select when ordering. Each Square: 3.33mm x 3.33mm when using 1x...
