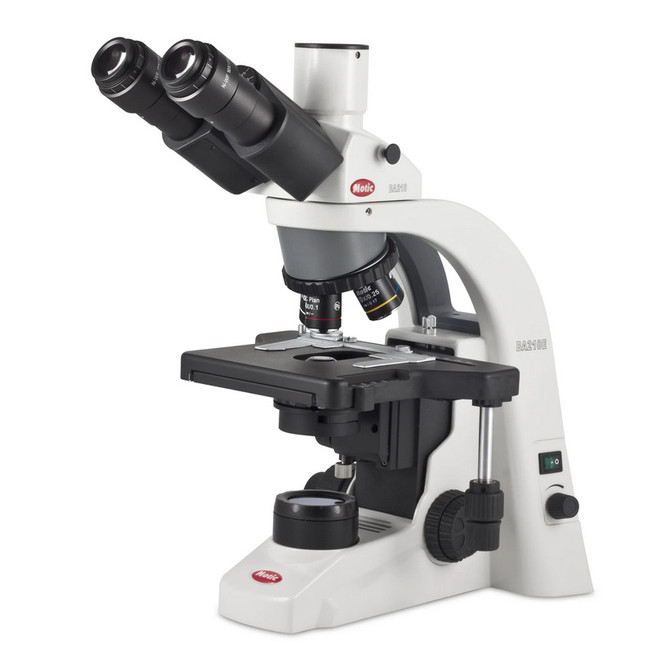

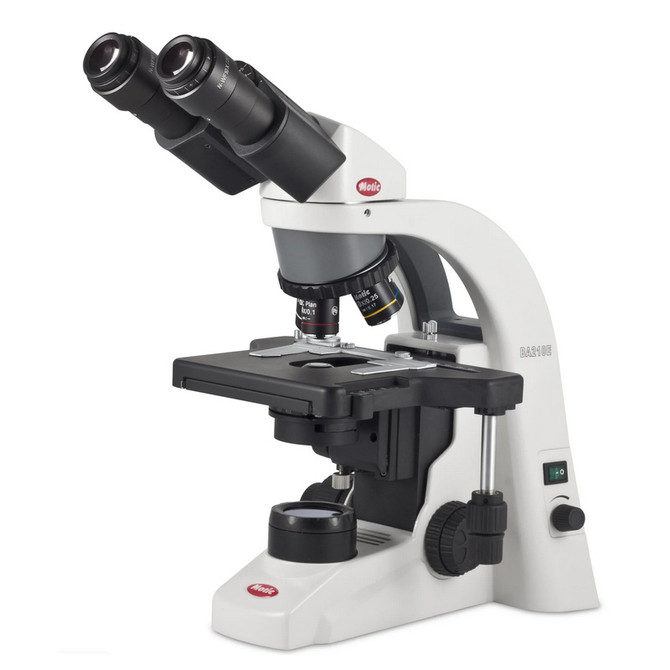

The Motic BA210E biological microscope for clinical, University or Institutional uses. Includes color corrected infinity optical system.
- Objective Lenses: Inward facing quadruple objective turret revolving nosepiece holds Color Corrected Infinity System (CCIS) EC Plan Achromat 4x, 10x, 40xs, 100xs oil objectives. Optional 20x and 60x or simple phase (EC Plan Phase 10x & 40x) objectives are available.
- Eyepieces: Siedentopf high eyepoint widefield 10x eyepieces, FN 20mm, 30° inclined binocular tubes with interpupillary distance adjustments from 55 mm to 75 mm. Eyepiece accepts 25mm reticle. Head rotates 360° (WF15x eyepieces are also available). Choose from either binocular or trinocular. Trinocular option has beam splitter 100:0 / 20:80.
- Total Magnification: 40x, 100, 400xr, 1000xr oil immersion.
- Condenser: Focusable Abbe condenser, NA 1.25 with iris diaphragm and slot.
- Specimen Stage: Rectangular rackless mechanical stage, 140mm x 135mm with a ball bearing mechanism with a triangle steel rail which allows smooth cross travel motion of 76mm x 50mm and vernier scale readability to 0.1mm.
- Stand: T-shaped base and pyramid-designed frame provide superb stability and mechanical design to achieve ergonomic and fatigue-free operation.
- Focusing: Fine and coarse coaxial focusing. The Combination of a triangular steel rail with an adjustable torque control knob provides for easy control of the coarse focusing tension and total vertical movement of 25mm at 2 µm.
- Illumination: 3W LED illumination with intensity control for optimal brightness. Universal sensing power supply 100~240V.
- Size: 15.6" high, 7.5" wide, 10.4" deep
- Includes: 45mm blue filter, vinyl dust cover, cord hanger, and owner's manual.
- Warranty: Five year warranty excluding electrical parts.
- View the Motic BA210 User's Manual
View the Motic BA210 Brochure
If you are interested in viewing the digital version of this microscope click here.
