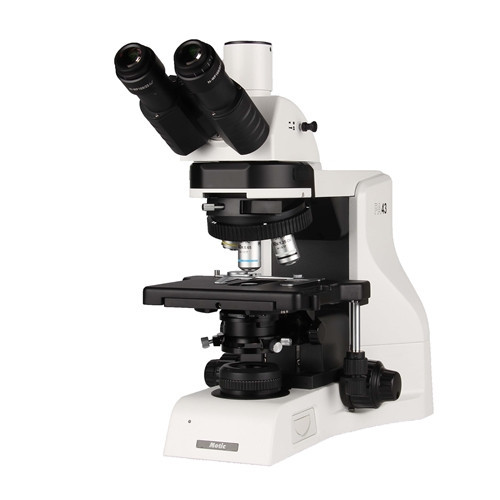

The Motic PA43 BIO hematology microscope provides a reliable and affordable platform to meet your research requirements and includes 4x, 10x, 40x, 50x, and 100x objectives.
- Objective Lenses: The following objectives are included with this microscope:
- Plan UC 4x/0.1, WD = 30.5 mm
- Plan UC 10x/0.25, WD = 17.4 mm
- Plan UC 40x/0.65, WD = 0.6 mm
- Plan UC 50x/1.0 Oil, WD = 0.17 mm
- Plan UC 100x/ 1.25x Oil, WD = 0.16 mm
- Viewing Head: Tilting trinocular inverted image tube head (FN 23), 15-45º inclined. Light path to eyepieces/camera either 100:0 or 50:50 or 0:100. Coded quintuple revolving nosepiece.
- Eyepieces: Wide-field 10x eyepieces/ 22mm. Adjustable diopters.
- Total Magnification: 40x, 100x, 400x, 500x, 1000x
- Specimen Stage: Rackless stage with a durable ceramic coated surface, 220 (W)x 170 (L) mm, stroke 80(X) x 55(Y) mm.
- Focusing: Manual coarse and fine focusing
- Illumination: Full power transmitted Koehler illumination system with interchangeable halogen and LED modules. Halogen module is 6V/ 30W and LED illumination is 3W.
- Condenser: Achromat swing-out condenser, NA 0.90/ 0.13
- Size: 343mm x 476mm x 436mm (19" x 13.5" x 17")
- Warranty: 5 year warranty on microscope parts and 1 year warranty on electrical components
- View the Motic PA43 BIO Product Brochure
View the Motic PA43 BIO Flyer
