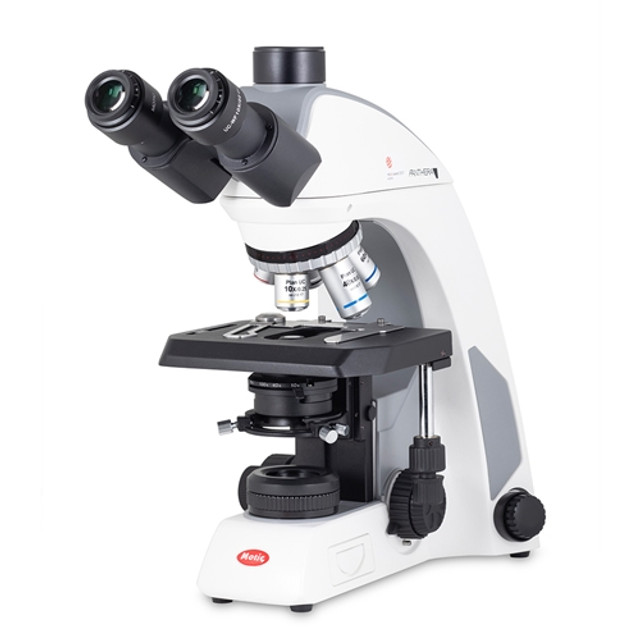

The Motic Panthera C2 simple phase trinocular microscope has Motic LightTracer digital illumination control and premium Plan UC optics for university level teac…Read more
The Motic Panthera C2 simple phase trinocular microscope has Motic LightTracer digital illumination control and premium Plan UC optics for university level teaching. 3W LED illumination is easily interchangeable with different color temperature LED bulbs and includes a Ph2 slider with a phase centering telescope.
Objective Lenses: Color Corrected Infinity Optical System. Plan UC Achromat objectives 4x, 10x, 40x S PH are Pb free and mounted on reversed quintuple coded nosepiece.
Eyepieces: Interpupillary distance is adjustable from 48-75mm. Dual diopters of +/-5. UC-WF10x/22 eyepieces. Accepts a 25mm diameter eyepiece reticle.
Total Magnification: 40x, 100x, 400x
Specimen Stage: Compact and rackless mechanical stage with double slide holder measures 185mm x 145mm with X-Y travel range of 75x50mm. Upper limit stop is present and adjustable.
Stand: Effective ergonomics and maximum expandability are built into this stand. The wide arm provides strength and rigidity. Additionally, the inverted "Y" support in the back of the microscope provides extra lateral stability. Built in USB 2.0 connectivity for external camera power or battery pack.
Focusing: Fine and coarse coaxial focusing with tension adjustment. Minimum fine focus precision 2µm. Z-Axis movement of 25mm.

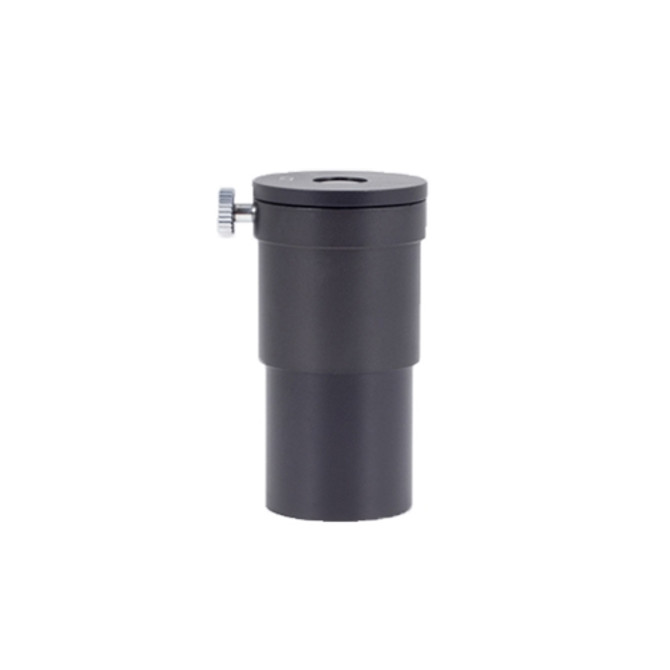

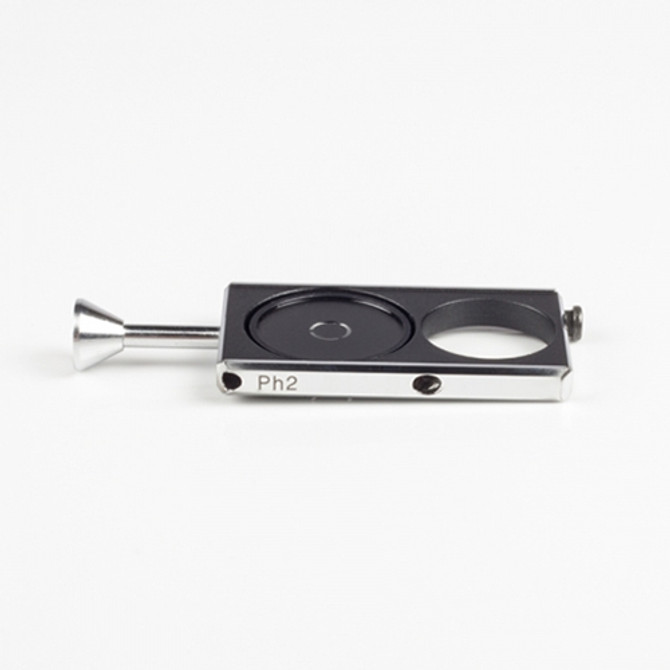

Condenser: Focusable and centerable NA 0.90 / 1.25 Abbe Condenser with slider slot. Includes phase slider Ph2 and centering telescope.
Illumination: 3W LED, fixed Koehler. LED color temperature interchangeability. 3W LED modules are available in 3500ºK low color and 5500ºK high color temperatures. Package includes 5500ºK LED module. 110~240V (CE).
Motic LightTracer: Digital illumination control. Digital intensity knob with coded LED nosepiece controls the illuminator to offer information on the current light intensity of each objective. Once calibrated, the user does not need to adjust the illumination intensity when changing magnification.
Size: 11.1" L x 8.3" W x 16" H, 18.3lbs
Includes: Power cord, blue filter, allen hexagonal key, vinyl dust cover, HAL and LED module, instruction manual
Warranty: Five year warranty excluding electrical parts.
The Motic Panthera C2 simple phase trinocular microscope has Motic LightTracer digital illumination control and premium Plan UC optics for university level teaching. 3W LED illumination is easily interchangeable with different color temperature LED bulbs and includes a Ph2 slider with a phase centering telescope.
Objective Lenses: Color Corrected Infinity Optical System. Plan UC Achromat objectives 4x, 10x, 40x S PH are Pb free and mounted on reversed quintuple coded nosepiece.
Eyepieces: Interpupillary distance is adjustable from 48-75mm. Dual diopters of +/-5. UC-WF10x/22 eyepieces. Accepts a 25mm diameter eyepiece reticle.
Total Magnification: 40x, 100x, 400x
Specimen Stage: Compact and rackless mechanical stage with double slide holder measures 185mm x 145mm with X-Y travel range of 75x50mm. Upper limit stop is present and adjustable.
Stand: Effective ergonomics and maximum expandability are built into this stand. The wide arm provides strength and rigidity. Additionally, the inverted "Y" support in the back of the microscope provides extra lateral stability. Built in USB 2.0 connectivity for external camera power or battery pack.
Focusing: Fine and coarse coaxial focusing with tension adjustment. Minimum fine focus precision 2µm. Z-Axis movement of 25mm.
Condenser: Focusable and centerable NA 0.90 / 1.25 Abbe Condenser with slider slot. Includes phase slider Ph2 and centering telescope.
Illumination: 3W LED, fixed Koehler. LED color temperature interchangeability. 3W LED modules are available in 3500ºK low color and 5500ºK high color temperatures. Package includes 5500ºK LED module. 110~240V (CE).
Motic LightTracer: Digital illumination control. Digital intensity knob with coded LED nosepiece controls the illuminator to offer information on the current light intensity of each objective. Once calibrated, the user does not need to adjust the illumination intensity when changing magnification.
Size: 11.1" L x 8.3" W x 16" H, 18.3lbs
Includes: Power cord, blue filter, allen hexagonal key, vinyl dust cover, HAL and LED module, instruction manual
Warranty: Five year warranty excluding electrical parts.
