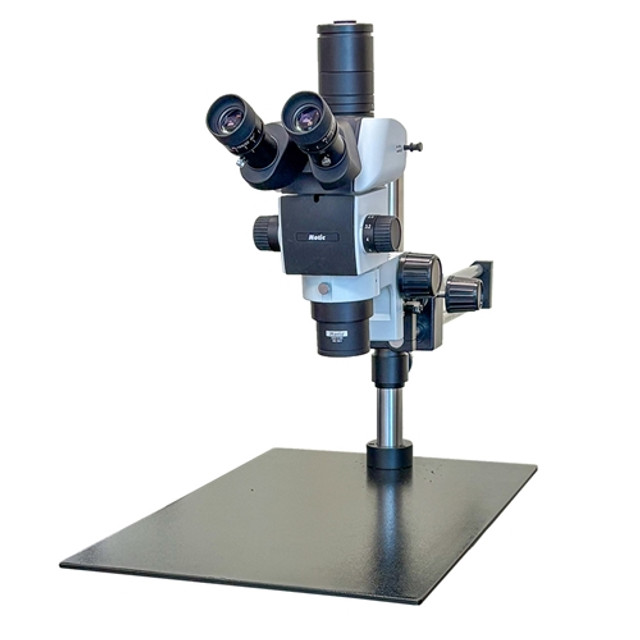

Motic SM7 Common Main Objective Stereo Microscope

The Motic SM-7 common main objective stereo microscope provides high resolution, true color reproduction, and low distortion. The Galilean Optical Zoom System, denoting an Infinity Optical System, allows for high flexibility.

• Optical System : Infinity optical system, common main objective (CMO, Galilean), both ideal for inspection applications.
• Viewing Head: Binocular or trinocular viewing head available. Trinocular head has 2-step light path selection options: 100% eyepieces or 80% trinocular / 20% eyepieces.
• Eyepieces: Includes widefield 10x/22 eyepieces with diopter adjustment. Eyetubes are inclined 30°. Interpupillary adjustment from 55mm to 75mm.
• Objective Lens: 1x Plan Apochromat Objective Lens.
• Working Distance: 81mm.
• Zoom Ratio: 7:1.
• Zoom Magnification: 0.8x - 5.6x with click stops at 0.8x, 1x, 1.25x, 1.6x, 2x, 2.5x, 3.2x, 4x, 5x, 5.6x.
• Total Magnification: 8x - 56x.
• Stand: Large working area stand with base 290mm W x 314mm H. Includes black and white stage plate.
• Focusing: Coarse focusing controls with knob tension adjustment, focusing stroke 120mm.
• Illumination: Includes 4-Quadrant LED ring light, ESD free. Variable intensity adjustable brightness from 0-100%. 72 LED lights offer cool, bright illumination. UL, CSA Certified. 100~240V.
• Dimensions: 14.6" H x 14.5" L x 13" W.
• Warranty: Five year warranty excluding any electrical parts, 1 year warranty on LED ring light.
