Reticle Grid 0.1mm Squares 100 Total
Reticle Grid 0.1mm Squares 100 Total
Reticle Grid 0.1mm Squares 100 Total

Reticle Grid 0.1mm Squares 100 Total

No reviews yet Write a Review
KR-430 glass eyepiece reticle. Grid 1mm x 1mm. 100 squares total (10x10). Diagonal = 1.41mm. Available in a variety of diameters; select when ordering. Each Sq… Read more
SKU: KR430
Measurement: Metric
Square Size: 0.1mm
$125.00
icon Share icon Share
Request a quote
Description

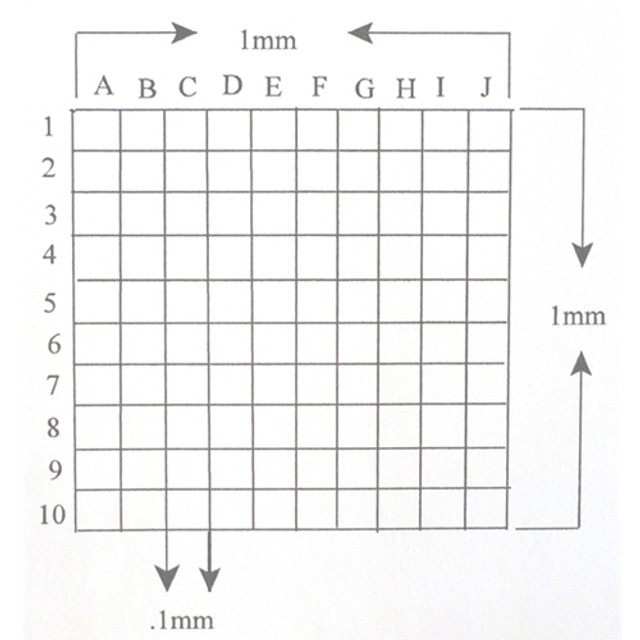

KR-430 glass eyepiece reticle. Grid 1mm x 1mm. 100 squares total (10x10). Diagonal = 1.41mm. Available in a variety of diameters; select when ordering.

  • Each Square: 0.1mm when using 1x objective
  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Glass Thickness: 1.5mm+/-0.1mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.

NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
