Reticle Grid 0.625mm Squares 400 Total
Reticle Grid 0.625mm Squares 400 Total
Reticle Grid 0.625mm Squares 400 Total

Reticle Grid 0.625mm Squares 400 Total

No reviews yet Write a Review

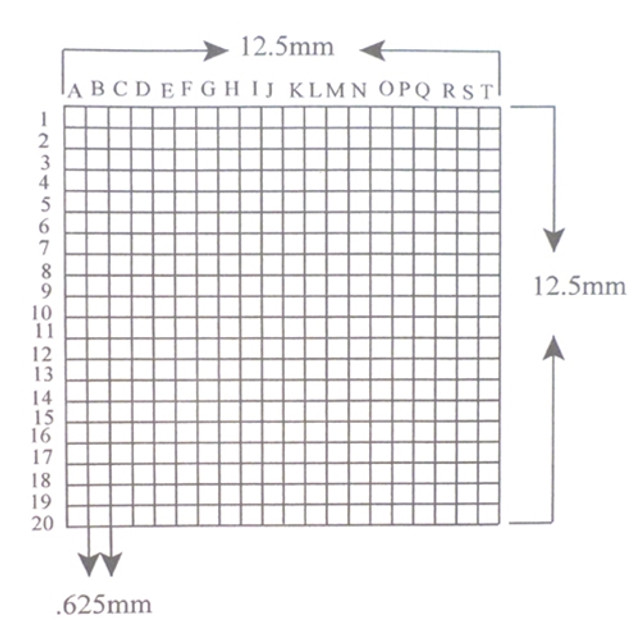

KR-424 glass eyepiece reticle. Grid 12.5mm x 12.5mm. 400 squares total (20x20). Diagonal = 17.67mm. Available in a variety of diameters; select when ordering. … Read more
SKU: KR424
Measurement: Metric
Square Size: 0.625mm
$125.00
icon Share icon Share
Request a quote
Description

KR-424 glass eyepiece reticle. Grid 12.5mm x 12.5mm. 400 squares total (20x20). Diagonal = 17.67mm. Available in a variety of diameters; select when ordering.

  • Each Square: 0.625mm when using 1x objective
  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Glass Thickness: 1.5mm+/-0.1mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.

NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
