Reticle Grid 1mm Squares 100 Total with Scale

Reticle Grid 1mm Squares 100 Total with Scale

No reviews yet Write a Review

KR-407 glass eyepiece reticle. Grid 10mm x 10mm. 100 squares total (10x10) with numbers 10mm in 100 division scale numbered 0-10. Diagonal = 14.14mm. Available … Read more

SKU:

Measurement: Metric

Square Size: 1mm

$125.00

Current Stock:

Quantity:

Request a quote

Description

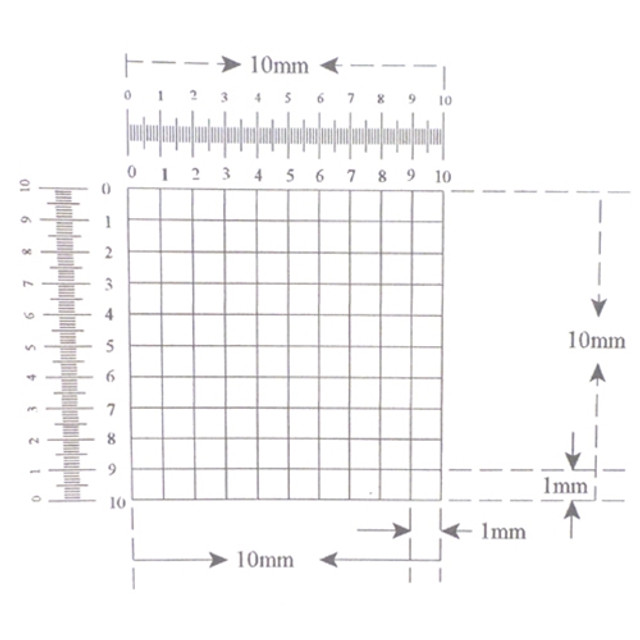

KR-407 glass eyepiece reticle. Grid 10mm x 10mm. 100 squares total (10x10) with numbers 10mm in 100 division scale numbered 0-10. Diagonal = 14.14mm. Available in a variety of diameters; select when ordering.

Each Square: 1mm when using 1x objective. Each scale division = 0.1mm with 1x objective.
Labeling: Choose from numbers on X & Y axis or letters and numbers.
Lines: Chrome deposition
Chamfer: 0.010" - 0.020"
Flatness: 2 waves or better
Centering: Within 0.005"
Glass Thickness: 1.5mm+/-0.1mm
Surface Quality: 20/10
Parallelism: 2 min.

NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
