KR-433 glass eyepiece reticle whipple. Whipple 10mm x 10mm. 100 squares total (10x10). One square in 16 squares (4x4). Diagonal = 14.14mm. Available in a variet… Read more
SKU:
$125.00
icon Share icon Share
Request a quote
Description

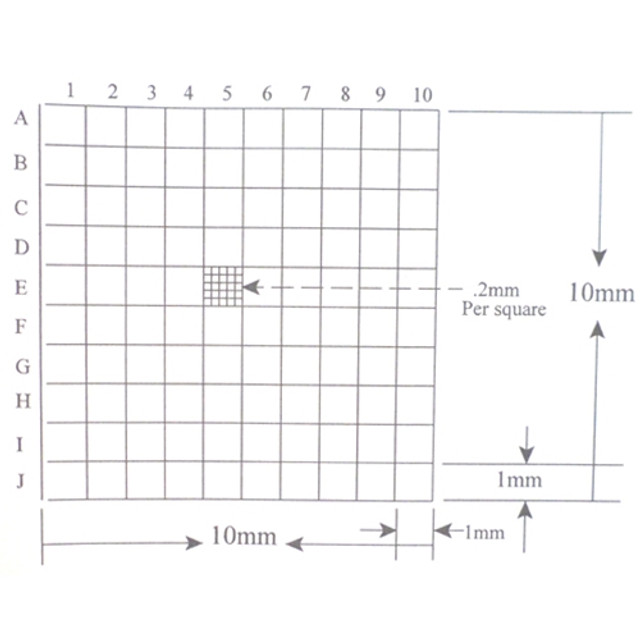

KR-433 glass eyepiece reticle whipple. Whipple 10mm x 10mm. 100 squares total (10x10). One square in 16 squares (4x4). Diagonal = 14.14mm. Available in a variety of diameters, select below when ordering. Labeled with numbers horizontal (1-10) and letters vertical (A-J) or no labeling.

  • Each Large Square: 1mm when using 1x objective.
  • Each Small Square: 0.25mm when using 1x objective.
  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Glass Thickness: 1.5mm+/-0.1mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.



NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
